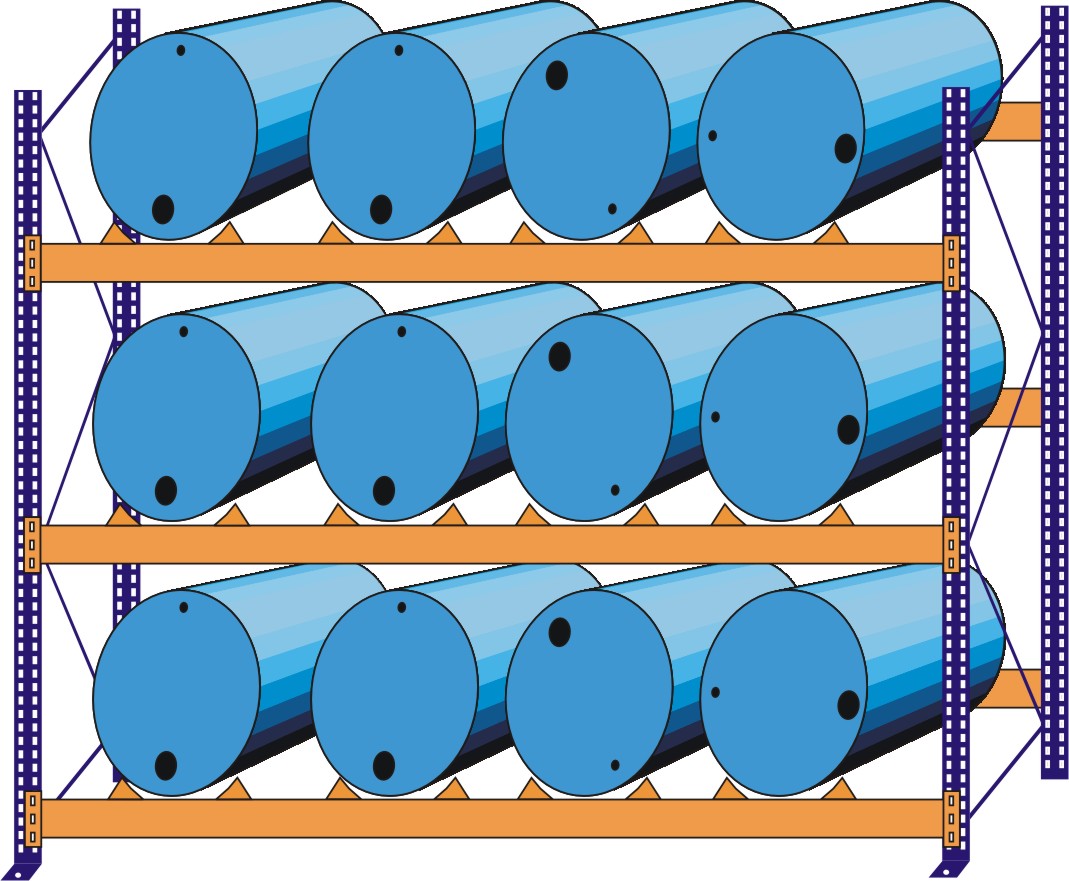

| SPECIFICATION | |
|---|---|
| UPRIGHT | (90 - 95) X 65 X 02 MM THICK (SIMPLE UPRIGHT) 100 X 65 X 02 MM THICK (OMEGA SECTION) HEIGHT DEPENDING ON REQUIREMENT |
| BOX BEAM | (100 - 120) X 50 X 02 MM THICK |
| DRUM CRADLE | 50 X 50 X 03 MM THICK |
| CROSS BRACING | 1”X 1” SQUARE PIPE 1.2”X 1.2” SQUARE PIPE |
| BEAM BRACKET | 111 X 125 X 03 MM (02 NOTCHING) 111 X 222 X 03 MM (03 NOTCHING) 111 X 300 X 03 MM (04 NOTCHING) |
| BASE PLATE | 152 X 152 X 80 MM (03 MM THICK) WITH 02 RAWAL BOLTS |
| G.I. NUTS & BOLTS WITH WASHER | 70 X 08 MM HALF THEARD BOLT FOR FRAMES 20 X 08 MM HALF THEARD BOLT FOR BEAMS 20 X 08 MM HALF THEARD BOLT FOR BASE PLATE |
